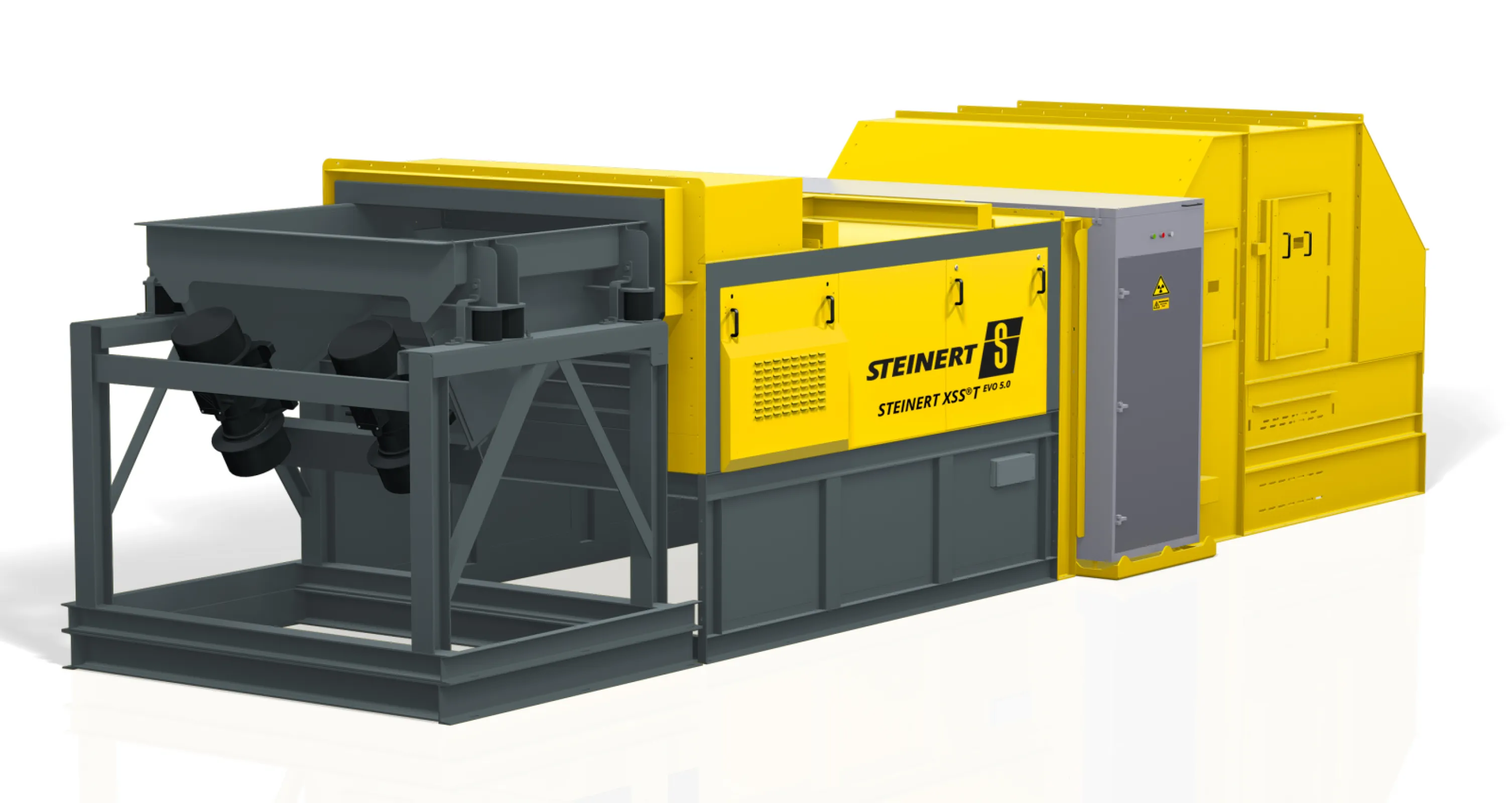

STEINERT XSS® T EVO 5.0

Density sorting with the STEINERT XSS T EVO 5.0 – via x-ray transmission under the dual-energy principle

For a wide range of sorting solutions and a high level of operational reliability

The STEINERT XSS T EVO 5.0 x-ray sorting system is used for dry density sorting of bulk materials. A transmitting procedure detects material-dependent differences in the absorption of x-rays then classifies and uses them for sorting into density classes.

Steinert customers benefit from the continuous advances made to the sorting machine - especially from the following features in the new EVO 5.0 generation:

MDE stands for Multilayer Data Evaluation - The function takes the place of particularly challenging sorting tasks, such as magnesium detection. Or it solves the issue of detecting and distinguishing composite objects and permits high-resolution object recognition with the classification of various detection tasks running in simultaneous.

AXM - Automatic x-ray monitoring and calibration of the x-ray sensors help achieve consistently high detection and sorting quality. This produces consistently high levels of detection and sorting quality over the entire life of the x-ray components.

HR valve pitch - The high-resolution valve pitch of 6.25 mm sorts even fine material to high levels of precision and thereby improves the sorting performance and cost-effectiveness of processing fine material.

Auto X clean - In the new generation of machines, the X-ray scan area is cleaned automatically. This results in consistently reliable detection and significantly reduces the amount of manual cleaning needed.
